  • 250mm VIBRACIÓN- REDUCCIÓN MARTILLO NEUMÁTICO

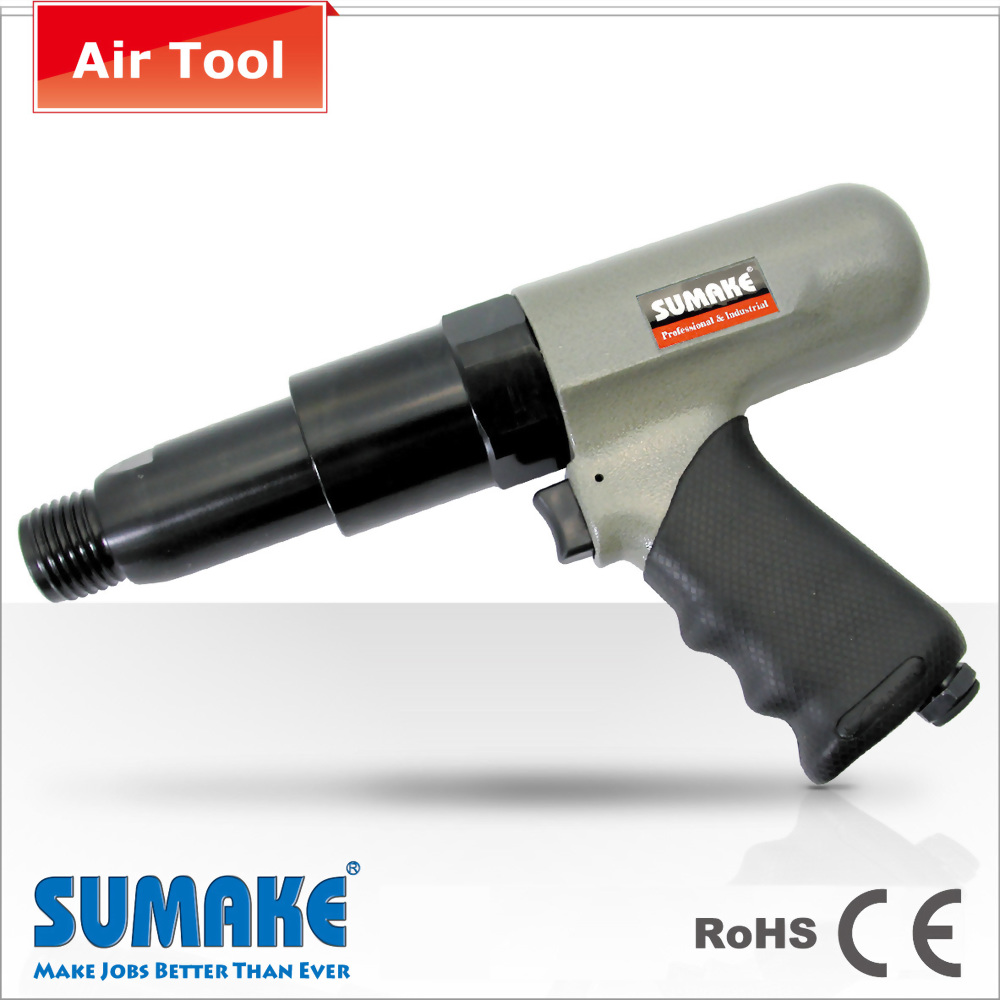

250mm VIBRACIÓN- REDUCCIÓN MARTILLO NEUMÁTICO

modelo : ST-2232/H

250mm VIBRACIÓN- REDUCCIÓN MARTILLO NEUMÁTICO
Model #ST-2232/R (ROUND: 0.401" Chisel shank)

Model #ST-2232/H (HEX: 10/11mm Chisel shank)



Bore Diameter (I.D): 3/4" (19 mm)

Piston Stroke: 3-7/10" (96 mm)
Blow Per Min: 2;100(BPM)

Noise Level: 105 dBA

Suggest Air pressure: 6.5 kg/cm2 (90 psi)

Overall Length: 11" (280 mm)

Air inlet: 1/4" PT; Air hose (I.D): 3/8"

Air consumption: 10 cfm (283 l/min)
Net Weight: 2.6 kgs (5.7lbs)

Packing: 6pcs/Ctn/18 kgs/1 Cuft



* Character:

1.    Front & rear exhaust.

2.    Providing a vibration suppressing device to be incorporated in an air hammer to overcome the drawbacks of the conventional air hammering devices.

3.    Having a simple structure and thus low costs; to effectively suppress the transmission of vibration caused by an air hammering mechanism of the air hammer.

4.    Providing a vibration suppressing device for air hammer; which has relatively long service life without the need of replacing fatigued parts and which does not adversely affect the output power of the air hammer. Applying alloy steel material for cylinder & piston.
